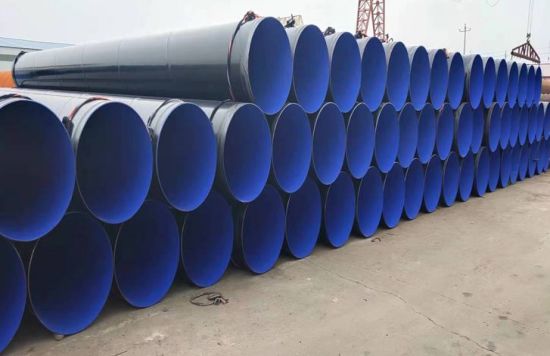

Fusion Bonded Epoxy (Inner Wall) Coating For steel pipes, pipe fittings, valves, pumps

Description

FBE (Inner Wall)(Standard AWWA C213-2022)

The product implements AWWA C213-2022 standard.It is made of special epoxy resin, special curing agent, food-grade facial filler configuration, high reactivity, strong adhesion, high crosslinking density, good surface smoothness of the coating, high luster, good flexibility and good mechanical properties. In addition to the general anti-corrosive powder properties, this product also meets the safety requirements of protective materials for drinking water.

1. Application scope and characteristics

●External corrosion prevention of steel pipes, pipe fittings, valves, pumps, containers, components, etc.

● Compared with other types of coatings, environmental protection, easy to thick coating, good adhesion, with excellent cathode stripping and anti-corrosion properties.

●It has the characteristics of mature process, wide application range, long anti-corrosion life, and wide operating temperature range (-30℃ ~75℃).The broken areas are easy to repair.

2. Method and dosage

1 .Coating method: Electrostatic spraying,thermal spraying, fluidized bed, well immersion coating, roll coating.

2 .Theoretical dosage: 150g/M2/100μm.

3 .Surface treatment: Sandblasting or Pelblasting.

4 .Curing instructions: The powder coating is applied on the surface of 180~230℃ preheated workpiece, cured by waste heat, and generally does not need later heating. If the ambient temperature is very low or the heat capacity of the workpiece is insufficient, additional heating and curing is required.

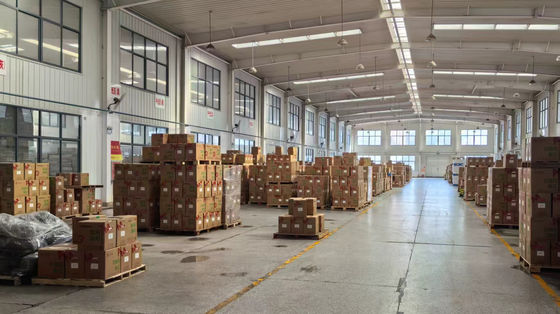

3. Producing Department

4. Paking
